Log

Large organizations and long-time ProjectDox customers value their audit trail. Archiving the ProjectDox LogReports table enables the preserving of the information by reducing the number of records, without affecting the working database. The Microsoft SQL limits are reliably maintained by pushing the records to another database or deleting old records based upon configuration.

ProjectDox Core Tab

1. Shared folder named PDOXLogs has been created in the same local network.

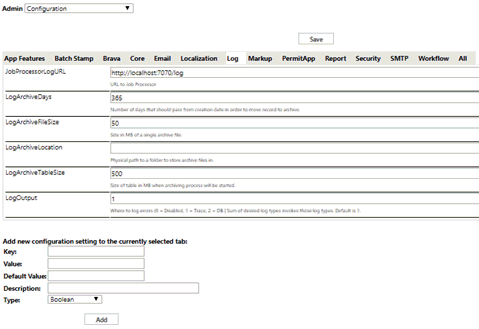

2. Configure LogArchive settings on Admin>Configuration>Log tab.

The fields below are populated with the following defaults during the initial install and when a site is updated with the Updater.autosql:

• LogArchiveDays=365

• LogArchiveFileSize=50MB

• LogArchiveTableSize500MB

• LogArchiveLocation=[empty string]

•  LogOutput=2

3.     Ensure that the Utility service is running. No specific configurations are required.

• Debug.EventDate>= 2 days

• JPQueueBatch.DateUpdated >= 14 days

• JPQueueTickets.DateCreated >= 14 days

·   The above days are how long the records will exist in the database before being deleted. These days are not configurable.

If conditions that have been set are met, then PDFs will be generated in the specified shared location.

Archive Selection Process

• If LogArchiveLocation is an empty string, then the archive process is ignored

• If the LogReports.UsageDate >= LogArchiveDays, then archive the old records. If LogArchiveDays=0/empty, then ignore this check.

• If the LogReports table size is >= LogArchiveTableSize, then archive starting with oldest records first. This is the case even if LogReports.UsageDate is not >= LogArchiveDays. If LogArchiveTableSize=0/emptythen ignore.

• When archiving records, the service will bring the table under the LogArchiveTableSize value (less 10%). This will prevent data from continually being archived.

• Archiving takes place in the background, 10,000 records at a time, to ensure ProjectDox performance is not hindered.

• Once the text has been written to the log file successfully then those records are batch deleted from the LogReports table.

Archive Log

• Files are archived to LogArchiveLocation which is the storage path for the log files.

• Naming convention is LogReports_mm_yyyy_[SEQUENCE #].pdf.

• The complete record from the LogReports record is a PDF that will include raw HTML tags and not look like it would in a browser.

If LogArchiveFileSize is 0/empty then it will be written until it reaches the max esignation, the default is 50 MB. An example of these files would be 04_2016_0.pdf (50 MB), 04_2016_1.pdf (50 MB), 04_2016_2.pdf (<50 MB). 04_2016_2.pdf is the current file being written to until it reaches 50MB and then 04_2016_3.pdf would be created.

Determines error log options.
